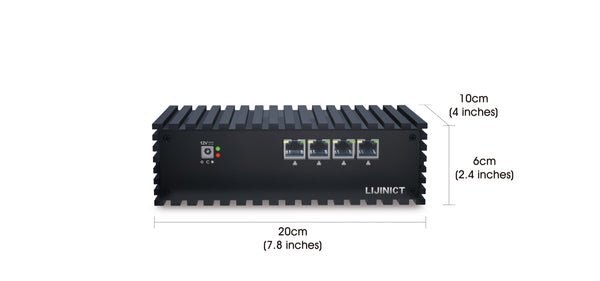

TX380-CC x4 Gigabit Ethernet Firewall Hardware
TX380-CC x4 Gigabit Ethernet Firewall Hardware
Couldn't load pickup availability
Part No# TX380-CC
CPU / GPU Intel SkyLake/KabyLake U series CPU
(Celeron 3865U , 7th Gen Core i3 / i5, HD Graphics 510/610)
Memory 1 x DDR3L SODIMM , Support up to 8GB max
Storage 1 x 2.5-inch HDD/SSD, 1 x Mini-PCIE for Msata SSD
Front I/O 2 x USB 3.0 port , 2 x 2.0 port
2 x HDMI port
1 x DB9 COM RS232 port
Rear I/O 1 x 5.5mm x 2.5mm DC JACK
4 x 10/100/1000M BASE-T (Intel® Ethernet Controller I211 Series)
OS Windows 7, Windows 10, Linux, Pfsense, OPNVPN. Ubuntu, FreeBSD, ect.
Power DC12V @ 3A
Temperature Work Temp -20~60℃, Storage Temp -40~85℃
Specification
Specification
Intel Atom® Processor C3558, Octa Core, 8M Cache, up to 2.20 GHz*None GPU
Download
TC300 Series DatasheetTC300-TP
Collapsible content
CPU /GPU
Memory
2x SODIMM (64G Max), DDR4/2133/2400MHz
Storage
HDD: 1x Sata 3.0 (2.5’’ HDD or SSD)
EMMC 5.1: 256GB max *
FrontI/O
2 x 10 Gigabit SFP+
2 x PoE ports
RearI/O
2 x USB 3.0 port
1 x RJ-45 console port (RS232)
1 x Power button
1 x 5.5mm x 2.5mm DC JACK
Internal interface
SLOT1/2：NGFFSLOT(M.2)RVS B/E KEY , support SSD /4G /WiFi Module
SLOT3/4：Mini PCIE ,support to 4G module/SSD
SIM SLOT: 2x Micro-Sim
Buzzer x1
OS
Windows 7, Windows 10, Linux, PFsense, OPNVPN. Ubuntu, FreeBSD, ect.
Power
DC48V @ 3A
Temperature
Working Temp -20~60℃, Storage Temp -40~85℃

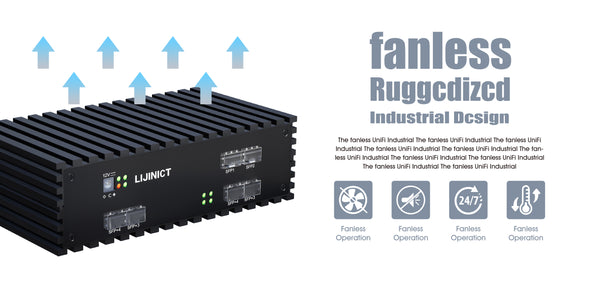

Ventilation : Fanless
