LIJINICT

TC300-TTG

TC300-TTG

Regular price $739.00
Regular price Sale price $739.00
Sale Sold out

Specification

Part No#        TC300-TTG
CPU / GPU     Intel Atom® Processor C3758, Octa Core, 16M Cache, up to 2.20 GHz
                        *None GPU
Memory         RAM: 2x SODIMM (64G Max), DDR4/2133/2400MHz
Storage          HDD: 1x Sata 3.0 (2.5’’ HDD or SSD); EMMC 5.1:  256GB max *
Front I/O        4 x 10 Gigabit SFP+
                        2 x 2.5G PoE (Intel® Ethernet Controller i225-V Series)
Rear I/O         2 x USB 3.0 port
                        1 x RJ-45 console port (RS232)
                        1 x power button
                        1 x 5.5mm x 2.5mm DC JACK
Internal interface
                         SLOT 1/2:NGFFSLOT(M.2)RVS B/E KEY , support SSD /4G /WiFi Module
                         SLOT 3/4:Mini PCIE ,support to 4G module/SSD
                         SIM SLOT: 2x Micro-Sim
                         Buzzer x1
OS                    Linux, PFsense, OPNVPN. Ubuntu, FreeBSD, ect.
Power              DC12V @ 3A
Temperature   Working Temp -20~60℃, Storage Temp  -40~85℃
                           Ventilation : Fanless





Intel® Atom C3000 Based

Delivering low power, efficient intelligence to the farthest edge of the network.



Fanless Design

* Silent operation
* Heat conductivity
* Less downtime
* Higher reliability and durability
* Small footprint
* Longer service life
* Low power consumption

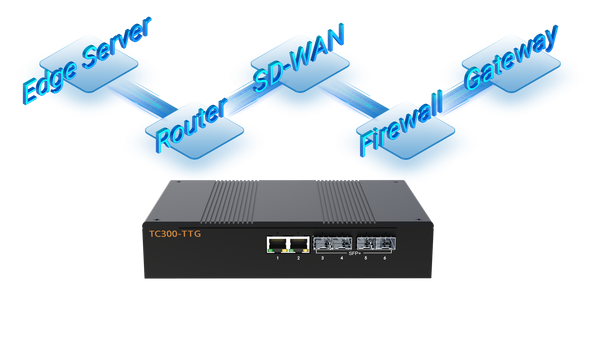

Diversified Applications

*Edge Server

*Software Router

*SD-WAN Hardware

*Firewall

*Gateway




Specification Download

Specification

Intel Atom® Processor C3558, Octa Core, 8M Cache, up to 2.20 GHz*None GPU

View full details

TC300-TP

Collapsible content

CPU /GPU

Memory

2x SODIMM (64G Max), DDR4/2133/2400MHz

Storage

HDD: 1x Sata 3.0 (2.5’’ HDD or SSD)

EMMC 5.1:  256GB max *

FrontI/O

2 x 10 Gigabit SFP+

2 x PoE ports

RearI/O

2 x USB 3.0 port

1 x RJ-45 console port (RS232)

1 x Power button

1 x 5.5mm x 2.5mm DC JACK

Internal interface

SLOT1/2:NGFFSLOT(M.2)RVS B/E KEY , support SSD /4G /WiFi Module

SLOT3/4:Mini PCIE ,support to 4G module/SSD

SIM SLOT: 2x Micro-Sim

Buzzer x1

OS

Windows 7, Windows 10, Linux, PFsense, OPNVPN. Ubuntu, FreeBSD, ect.

Power

DC48V @ 3A

Temperature

Working Temp -20~60℃, Storage Temp  -40~85℃

Ventilation : Fanless
