LIJINICT

TC300-TP

TC300-TP

Regular price ¥0.00
Regular price Sale price ¥0.00
Sale Sold out
Specification Download View full details

Technical Spec

   Part No#
TG300-TP
   CPU / GPU
Intel Atom® Processor C3558, Octa Core, 8M Cache, up to 2.20 GHz      *None GPU
   Memory
RAM: 2x SODIMM (64G Max), DDR4/2133/2400MHz
   Storage
HDD: 1x Sata 3.0 (2.5’’ HDD or SSD) ; EMMC 5.1:  256GB max *
   Front I/O
2 x 10 Gigabit SFP+; 2 x 2.5G POE (Intel® Ethernet Controller i225-V Series)
   Rear I/O
2 x USB 3.0 port; 1 x RJ-45 console port (RS232); 1 x power button; 1 x 5.5mm x 2.5mm DC JACK
 Internal interface
SLOT 1/2:NGFFSLOT(M.2)RVS B/E KEY , support SSD /4G /WiFi Module
SLOT 3/4:Mini PCIE ,support to 4G module/SSD; SIM SLOT: 2x Micro-Sim; Buzzer x1
   OS
Windows 7, Windows 10, Linux, PFsense, OPNVPN. Ubuntu, FreeBSD, ect.
   Power
DC12V @ 3A
   Temperature
Working Temp -20~60℃, Storage Temp  -40~85℃; Ventilation : Fanless

Intel® Atom C3000 based

Delivering low power, efficient intelligence, to the farthest edge of the network.

Shop now

Fanless Design

* Silent operation
* Heat conductivity
* Less downtime
* Higher reliability and durability
* Small footprint
* Longer service life
* Low power consumption

Shop now

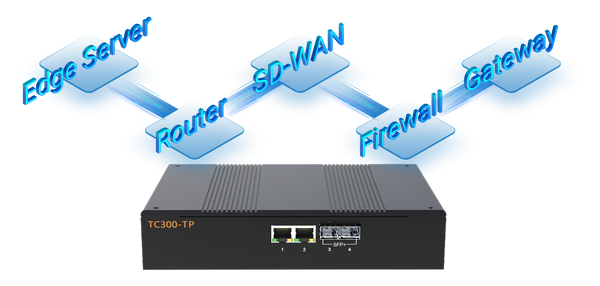

Diversified Applications

*Edge Server

*Software Router

*SD-WAN Hardware

*Firewall

*Gateway

Shop now
