TC300 Series DatasheetTC300-TP
Collapsible content

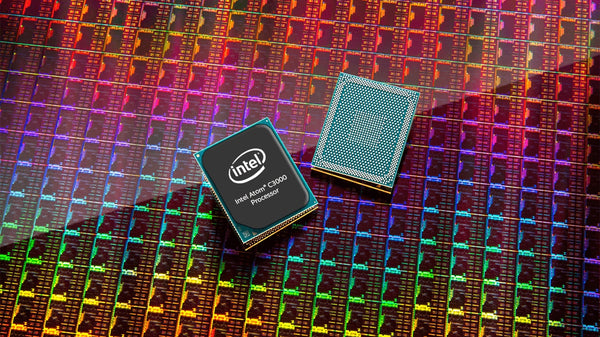

CPU /GPU
Memory
2x SODIMM (64G Max), DDR4/2133/2400MHz
Storage
HDD: 1x Sata 3.0 (2.5’’ HDD or SSD)
EMMC 5.1: 256GB max *
FrontI/O
2 x 10 Gigabit SFP+
2 x PoE ports
RearI/O
2 x USB 3.0 port
1 x RJ-45 console port (RS232)
1 x Power button
1 x 5.5mm x 2.5mm DC JACK
Internal interface
SLOT1/2:NGFFSLOT(M.2)RVS B/E KEY , support SSD /4G /WiFi Module
SLOT3/4:Mini PCIE ,support to 4G module/SSD
SIM SLOT: 2x Micro-Sim
Buzzer x1
OS
Windows 7, Windows 10, Linux, PFsense, OPNVPN. Ubuntu, FreeBSD, ect.
Power
DC48V @ 3A
Temperature
Working Temp -20~60℃, Storage Temp -40~85℃
Ventilation : Fanless
